Description
The MOTH Luna Laser Series provides an exceptional show laser with ILDA and DMX capabilities, allowing you to create the most spectacular displays. It combines the latest laser control technology, offering an immersive experience with an extensive selection of precise automated movements and effects.
General Specifications
| Beam Size @Aperture (mm) | 2.5 * 6mm |
| Scanning system | 40 kpps ILDA@8° , Scan angle Max 60° |
| System control | Auto, Sound, SD-Card, DMX512, ILDA |

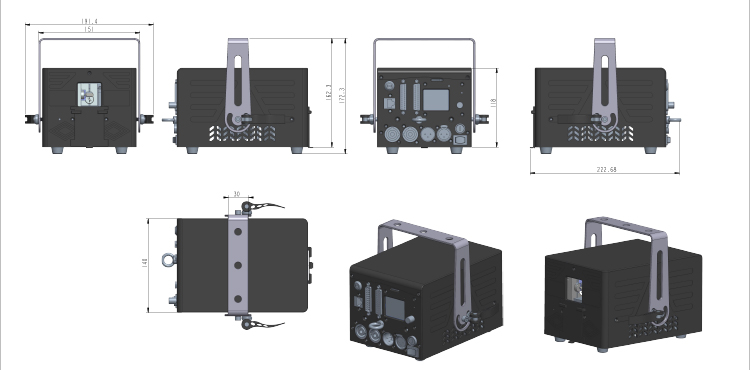

| Size (mm) | 156*224*125 |
| Power Supply | 100~240V / 50~60Hz |
| Divergence (full angle) | 1.1mRad-1.3mRad |
| IP Rating | IP54 |
| Working Lifetime (hours) | 8000 |
| Working Temperature (℃) | -20 to 40 |
| Product Weight (kg） | 3.42 |
Luna Laser Series Model Specifications
| Model | Wavelength & Power | ||
| R638 | G520 | B445 | |
| MOTH-LUNA-RGB3000 | 650mW | 800mW | 1500mW |
| MOTH-LUNA-RGB4000 | 1300mW | 1000mW | 2000mW |
| MOTH-LUNA-RGB5500 | 1300mW | 1200mW | 3000mW |
| MOTH-LUNA-R3000 | 3250mW | / | / |
| MOTH-LUNA-G2500 | / | 2500mW | / |
| MOTH-LUNA-G5000 | / | 4800mW | / |
| MOTH-LUNA-B9000 | / | / | 9000mW |
Features:
Safety: Emission delay, Mechanical shutter(on request), aperture masking -plate
Good beam, highly compact & seal-designed housing, dust-free
In the box:
- 1 x laser projector
- 1 x AC Power cord
- 2 x Keys
- 1 x Power output connector
- 2 x Remote Interlock connector
- 2 x Allen key
Other customized accessories such as ILDA cable, control systems (such as FB4), etc. are available upon request.
